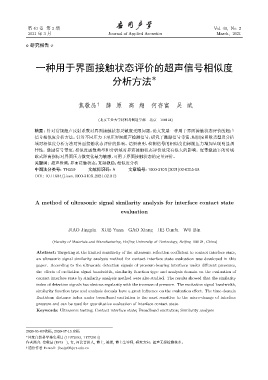

Page 87 - 《应用声学》2021年第2期

第 40 卷 第 2 期 Vol. 40, No. 2
2021 年 3 月 Journal of Applied Acoustics March, 2021

⋄ 研究报告 ⋄

一种用于界面接触状态评价的超声信号相似度

分析方法 ∗

焦敬品 † 薛 原 高 翔 何存富 吴 斌

(北京工业大学材料与制造学部 北京 100124)

摘要：针对常规超声反射系数对界面接触状态灵敏度受限问题，论文发展一种用于界面接触状态评价的超声
信号相似度分析方法。针对不同压力下承压界面超声检测信号，研究了激励信号带宽、相似度函数类型及分析
域对相似度分析方法对界面接触状态评价的影响。结果表明，检测信号的相似度指标随压力增加呈现明显规
律性。激励信号带宽、相似度函数类型和分析域对界面接触状态评价效果有很大的影响。宽带激励下的时域
欧式距离指标对界面压力微变化最为敏感，可用于界面接触状态的定量评价。
关键词：超声检测；界面接触状态；宽频激励；相似度分析
中图法分类号: TB559 文献标识码: A 文章编号: 1000-310X(2021)02-0255-08
DOI: 10.11684/j.issn.1000-310X.2021.02.012

A method of ultrasonic signal similarity analysis for interface contact state

evaluation

JIAO Jingpin XUE Yuan GAO Xiang HE Cunfu WU Bin

(Faculty of Materials and Manufacturing, Beijing University of Technology, Beijing 100124, China)

Abstract: Targeting at the limited sensitivity of the ultrasonic reflection coefficient to contact interface state,
an ultrasonic signal similarity analysis method for contact interface state evaluation was developed in this
paper. According to the ultrasonic detection signals of pressure-bearing interfaces under different pressures,
the effects of excitation signal bandwidth, similarity function type and analysis domain on the evaluation of
contact interface state by similarity analysis method were also studied. The results showed that the similarity
index of detection signals has obvious regularity with the increase of pressure. The excitation signal bandwidth,
similarity function type and analysis domain have a great influence on the evaluation effect. The time domain
Euclidean distance index under broadband excitation is the most sensitive to the micro-change of interface
pressure and can be used for quantitative evaluation of interface contact state.
Keywords: Ultrasonic testing; Contact interface state; Broadband excitation; Similarity analysis

2020-05-03 收稿; 2020-07-15 定稿
国家自然科学基金项目 (11972053, 11772013)
∗
作者简介: 焦敬品 (1973– ), 女, 河北晋州人, 博士, 教授, 博士生导师, 研究方向: 超声无损检测技术。
† 通信作者 E-mail: jiaojp@bjut.edu.cn
