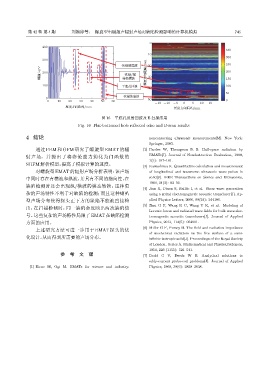

第 42 卷 第 4 期        刘婉婷等: 螺旋型电磁超声辐射声场对缺陷检测影响的计算机模拟                                          745


                                                                    0
                    400
                                                                                                     350
                                                                   10
                                                                                                     300
                    300
                                                      ʷ൓ጫฉअฉ       20                                250
                   ࣨϙ/mV  200                          ʷ൓ጫ/ഷ      ԒएவՔᡰሏ/mm  30                      200
                                                       ᣁ૱ഷฉ
                                                                                                     150
                    100                                ࣱअߘڀฉ                                         100
                                                                   40
                                                                                                     50
                                                       ʷ൓ഷฉअฉ
                     0                                             50
                      0    10  20   30   40   50   60                                                0
                                                                      -15  -10  -5  0  5  10  15
                              ԒएவՔᡰሏ/mm                                       ᫂एவՔᡰሏ/mm
                                              图 16  平底孔反射回波及 B 扫描结果
                                    Fig. 16 Flat-bottomed hole reflected echo and B-scan results

             4 结论                                                  noncontacting ultrasonic measurements[M]. New York:
                                                                   Springer, 2003.
                 通过 FEM 和 GFM 研究了螺旋型 EMAT 的辐                     [2] Pardee W, Thompson R B. Half-space radiation by
             射声场,并提出了将洛伦兹力简化为门函数的                                  EMATs[J]. Journal of Nondestructive Evaluation, 1980,
                                                                   1(3): 157–181.
             SGFM解析模型,提高了模拟计算的速度。                                [3] Kawashima K. Quantitative calculation and measurement
                 对螺旋型 EMAT的辐射声场分析表明:该声场                            of longitudinal and transverse ultrasonic wave pulses in
             中同时存在有横波和纵波,并具有不同的指向性,在                               solid[J]. IEEE Transactions on Sonics and Ultrasonics,
                                                                   1984, 31(2): 83–93.
             缺陷检测时还会出现纵/横波的模态转换,这种复
                                                                 [4] Jian X, Dixon S, Baillie I, et al. Shear wave generation
             杂的声场特性不利于对缺陷的检测;而且这种喇叭                                using a spiral electromagnetic acoustic transducer[J]. Ap-
             型声场分布使得探头正下方的缺陷不能被直接检                                 plied Physics Letters, 2006, 89(24): 244106.
                                                                 [5] Zhai G F, Wang K C, Wang Y K, et al. Modeling of
             出,在扫描检测时,同一缺陷会反映出两次缺陷信
                                                                   Lorentz forces and radiated wave fields for bulk wave elec-
             号。这些复杂的声场特性局限了EMAT在缺陷检测                               tromagnetic acoustic transducers[J]. Journal of Applied
             方面的应用。                                                Physics, 2013, 114(5): 054901.
                                                                 [6] Miller G F, Pursey H. The field and radiation impedance
                 上述研究方法可进一步用于 EMAT 探头的优
                                                                   of mechanical radiators on the free surface of a semi-
             化设计,从而得到所需要的声场分布。                                     infinite isotropic solid[J]. Proceedings of the Royal Society
                                                                   of London. Series A. Mathematical and Physical Sciences,
                                                                   1954, 223 (1155): 521–541.
                            参 考     文   献                        [7] Dodd C V, Deeds W E. Analytical solutions to
                                                                   eddy-current probe-coil problems[J]. Journal of Applied
              [1] Hirao M, Ogi M. EMATs for science and industry:  Physics, 1968, 39(6): 2829–2838.
